Category:Vibrating Screen
Specifications
1. Move on circular track
2. Connected by high strength bolt
3. High screening ratio
4. Offer Form E, CO
Description

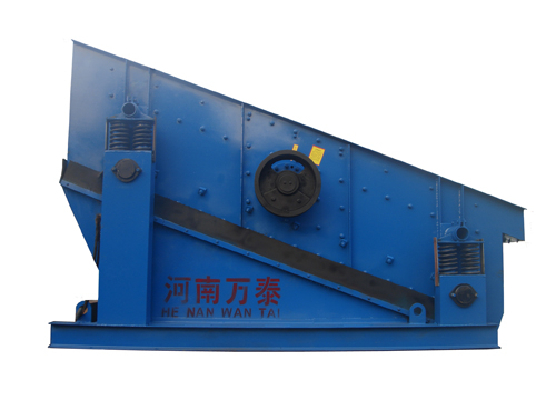

CircularVibrating Screen, also known as single-axis shaker, sieve boxes at various points along the trajectory is a circle or a similar round, its screen surface due to the motion characteristics of screen machines, theinstallation requires a larger angle, the angle is generally 16 °-20 °
Main Features
1.Vibrating screen outer side plate bending using block pattern, tube beam and side panels connectedwith high strength bolts, machine without welding, structural stiffness and strength very good.
2.The machine utilizes eccentric block as exciting force
3.Large separation sizes up to approx. 100 mm
Flexible Coupling
4.Side plate’s material is Q235A or Q245A, thickness can be 8~10 mm.
5.The screen clothing can be woven wire mesh, perforated plate, rubber sheet, polyurethane plate or else, that depends on the material and customer requirements.
Type | Net layers | Net area(m2) | Vibrating Frequency (r/min) | Double amplitude (mm) | Power (KW) | Capacity(t/h) | Theoretical weight(t) |
YA1860 | 1 | 10.8 | 960 | 5 -8 | 7.5 | 120-240 | 2.4 |
YA2060 | 1 | 12 | 7.5 | 150-260 | 2.6 | ||
YA2260 | 1 | 13.2 | 7.5 | 180-280 | 3 | ||
YA2460 | 1 | 14.4 | 7.5 | 210-300 | 3.3 | ||
2YA1560 | 2 | 8 | 7.5 | 80-200 | 3.5 | ||
2YA1860 | 2 | 10.8 | 11 | 120-240 | 4 | ||
2YA2060 | 2 | 12 | 11 | 150-260 | 4.1 | ||
2YA2260 | 2 | 13.2 | 11 | 180-280 | 4.4 | ||
2YA2460 | 2 | 14.4 | 11 | 210-300 | 4.7 | ||
3YA1560 | 3 | 8 | 15 | 80-200 | 4.8 | ||
3YA1860 | 3 | 10.8 | 15 | 120-240 | 5 | ||
3YA2060 | 3 | 12 | 15 | 150-260 | 5.1 | ||
3YA2260 | 3 | 13.2 | 15 | 180-280 | 5.2 | ||
3YA2460 | 3 | 14.4 | 15 | 210-300 | 5.3 | ||
4YA1860 | 4 | 10.8 | 18.5 | 120-240 | 5.7 | ||
4YA2060 | 4 | 12 | 18.5 | 150-260 | 5.8 | ||
4YA2260 | 4 | 13.2 | 18.5 | 180-280 | 6 | ||
4YA2460 | 4 | 14.4 | 22 | 210-300 | 6.2 | ||
5YA1560 | 5 | 8 | 15 | 80-200 | 5.2 | ||
5YA1860 | 5 | 10.8 | 15 | 120-240 | 5.4 | ||
5YA2060 | 5 | 12 | 15 | 150-260 | 5.6 |
