Category：Vibrating Screen

Specifications

1. Function for sieving, classifying

2. Min screen mesh: 0.074mm

3. Layers: 1-6

Description

Introduction

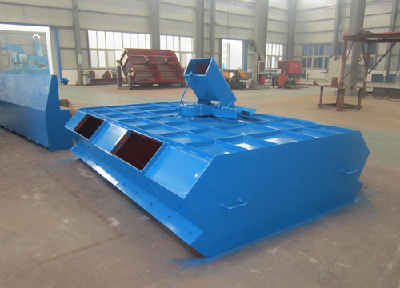

vibrating screen is generally used to sifting the material of non-sticky and dry powder , 0.074-5mm size, less than 70% moisture content, etc. Maximum feed particle size is not more than 10mm.

It is made up of vibrating motors, screen box, hopper, vibration damping springs and the support. Thesurface of linear vibrating screen can be inclined installed, and the inclination angle is 10°~15 °.

Applications

1) For screening&grading of dry powder, fine particle and fine powder.

2) Widely used in abrasive, building material, ceramic, chemical,  fertilizer,  food,  plastic, pharmaceutical, metallurgy industries, etc.

Specification

Characteristics

1)This machine is used for the coarse screening with large production output.

2) Long residence time of the materials on the screen net brings a large processed quantity.

3) The inclination of the screen surface can be adjusted to balance the screen accuracy and the production output.

Notice

Please provide us the following requirement, we will select suitable vibrating screen for you.

(a) The name of materials

(b) Aim of using: get rid of impurity, filtration, grading

(c) Treatment volume: kg /h, L/h.

(d) The specification of screen (mesh or mm).

(e) How long is the operation time every day?

(f) Vibratory screen can be provided with dust proof cover as required
