Category：Conveyor Feeding Series
Specifications
1.Site planning and design.
2.Hot selling in southeast Asia.
3.Technician be assigned.
4.After sales service: lifetime.
Description

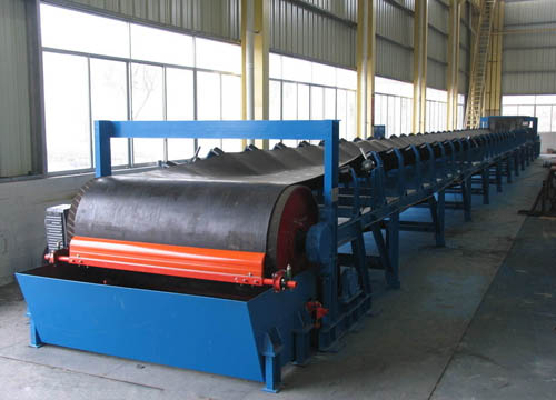

Introduction of modular conveyor belt:
1. Features-Large conveying capacity, reasonable structure, low cost, high universality, easy maintenance, stable performance and reliable operation.
2. Applications-Widely used in chemical, coal, construction, hydropower, light, metallurgy, mining, port, petroleum, petroleum industries, etc. For transports of loose material and packed products.
3. It may transport by unit set and also combine more sets or other feeding facilities to form a level or oblique feeding system so as to meet the demand of various patterns and operating lines. Transmission can be horizontal or tilt.
Width (mm) | Belt speed (m/s) | |||||||||||
0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.15 | 4 | 4.5 | 5.0 | 5.6 | 6.5 | |
Capacity (m³/h) | ||||||||||||
500 | 69 | 87 | 108 | 139 | 174 | 217 | ||||||
650 | 127 | 159 | 198 | 254 | 318 | 397 | ||||||
800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | |||||
1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | ||||
1200 | 593 | 742 | 951 | 1188 | 1486 | 1872 | 2377 | 2674 | 2971 | |||
1400 | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 3718 | 4130 | |||
1600 | 2186 | 2783 | 3444 | 4373 | 4920 | 5466 | 6122 | |||||
1800 | 2795 | 3494 | 4403 | 5591 | 6291 | 6989 | 7829 | 9083 | ||||
2000 | 3470 | 4338 | 5466 | 6941 | 7808 | 8676 | 9717 | 11277 | ||||
2200 | 6843 | 8690 | 9776 | 10863 | 12166 | 14120 | ||||||
2400 | 8289 | 10526 | 11842 | 13158 | 14737 | 17104 | ||||||
Specification
Technical parameters
1) Working temperature: -25°C~ 40°C. The temperature of conveying material should not exceed 50°C. Further measures will be taken for the special requirements of anti-explosion, water proof, anti-corrosion, heat and cold resistance.
2) Bulk density of conveying material: 0.5~2.5t/m3
3) Belt width classification: 500mm, 650mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm, 2200mm, 2400mm
4) Driving device classification: TDY electric roller; ZQ gear reduce; NGW planet gear speed reducer; XW,BW cycloidal two-speed reducer;
