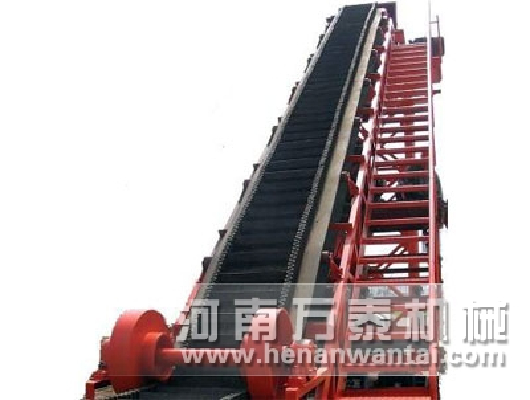

Product overview of large dip angle belt conveyor belt conveyor:

Large dip angle wave shaped gear edge belt conveyor: its structure is in flat shape rubber conveyor belt on both sides of the stick can be freely telescopic rubber waveform vertical "skirt", between the skirt and sticky with certain intensity and elasticity of the diaphragm is composed of a box shaped bucket, the material in a fight for continuous conveying. Large dip angle wave shaped rib belt conveyor: can be widely used in coal, food, building materials, chemical industry, water, electricity, metallurgy and other departments, in the range from ambient temperature to - 19 DEG C to 40 DEG C, conveying bulk specific gravity for 0.5-2.5t/m3 for a variety of bulk materials. For the delivery of materials with special requirements, such as high temperature, with acid, alkali, oil or organic solvents and other components of the material, it is necessary to use a special block conveyor belt. At present, the main production of large angle belt conveyor bandwidth are: B500, B650, B800 three. The packing density of transporting material is 0.5 ~ 2.5t/m3, and the working environment temperature is -19. For conveying high temperature, acid, alkali, oil or organic solvent composition of material, it is necessary to use special sidewall conveyor belt material, our company can according to your needs to customized special special large inclined angle belt conveyor transport.

The main use of the large angle waveform block belt conveyor:

1. Large dip angle wave shaped baffle with conveyor: for general purpose for bulk materials continuous conveying equipment, using is a wave baffle edges and cross baffles the conveyor belt. Therefore, it is especially suitable for large angle conveyor.

2. The machine can be used for coal, chemicals, building materials, metallurgy, electric power, light industry, food, ports, shipbuilding and other industries, in the work environment humidity to - 15 DEG C -- 40 DEG C range transported in bulk density for 0.5-2.5t/m3 for a variety of bulk materials.

3 for conveying materials with special requirements, such as: high temperature, with acid, alkali, oil substances or organic solvents and other components of the material, the need to use a special conveyor belt.

4 large angle waveform block belt conveyor: conveyor angle of 0 degrees -90.

The whole arrangement form of the large angle wave block belt conveyor:

In order to obtain better loading and unloading conditions, the machine uses the "Z" - shaped layout. The upper horizontal section, the lower water level section and the inclined section are provided, and the lower part of the horizontal section is provided with the material to be discharged at the upper level section. The upper horizontal section and the inclined section are connected with the convex arc section frame, and the lower section and the inclined section are connected with the concave arc segment frame to realize the smooth transition of the conveying belt.

1. Horizontal section: in order to adapt to different unloading height requirements of the material, the headstock divided into bow frame (rack height H0=1000mm), Chinese style headstock (headrest height H0=1100 ~ 1500 mm) and high type headstock (headrest height 0=1600 ~ 2000mm). And the corresponding, at the level of segments were equipped with low convex arc rack and low frame leg (equipped with a headrest height H0=1000mm), Chinese convex arc rack and Chinese middle frame legs (equipped with a headrest height H0=1100 ~ 1500 mm) and high convex arc rack and a high mounted in the middle of the frame support leg (equipped with a headrest height H0=1600 ~ 2000mm).

2 inclined segment: no matter on the level of the use of low - type, Chinese, or high - style intermediate frame legs, inclined sections are using low - type middle bracket legs. When the conveyor inclination angle is not less than 45 DEG C, recommended the use of type II type low middle frame legs.

3 launching flat section: the lower part of the lower middle frame leg.
