Category：Vibrating Screen
Specifications

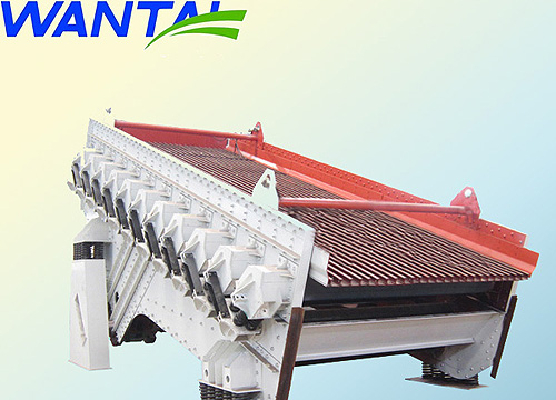

Antiresonance vibration screen
1.No exciter on screen box
2.40%-70% power saving
3.Save 20-30% on construction investment
Description
Brief introduction
Antiresonance vibration screen of FGZS series consist of screen box for the upper plasmid,Vibration body for the lower plasmid, master vibration spring ,vibration exciter, isolation spring , electric motor ,etc.
Model | Screen spec | Feed fraction | Capacity | Power | Frequency | Double-amplitude | Angle of tilt |
(mm×mm) | mm | (t/h) | kw | (Hz) | (mm) | (°) | |
FGZS 1237 | 3700×1200 | ≤200 | 10-100 | 3.7×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 1443 | 4300×1400 | ≤200 | 10-150 | 3.7×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 1548 | 4800×1500 | ≤200 | 15-200 | 5.5×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 1848 | 4800×1800 | ≤300 | 50-500 | 5.5×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 1860 | 6000×1800 | ≤300 | 80-600 | 7.5×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 2460 | 6000×2400 | ≤300 | 100-700 | 15×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 3060 | 6000×3000 | ≤300 | 120-800 | 18.5×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 3075 | 7500×3000 | ≤300 | 180-1000 | 37×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 3090 | 9000×3000 | ≤300 | 200-1100 | 45×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 3373 | 7300×3300 | ≤300 | 250-1200 | 45×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 3673 | 7300×3600 | ≤300 | 300-1300 | 55×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 3390 | 9000×3300 | ≤300 | 350-1400 | 55×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 3690 | 9000×3600 | ≤300 | 400-1500 | 55×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 40100 | 10000×4000 | ≤300 | 500-1800 | 75×2 | 12-16 | 6-14-28 | 15-25 |
FGZS 50120 | 12000×5000 | ≤300 | 500-2500 | 75×2 | 12-16 | 6-14-28 | 15-25 |
